Support and Resistance Auto Plots

By Tradewinds, in Trading Indicators

Recommended Posts

Tradewinds    12

Tradewinds
Posted

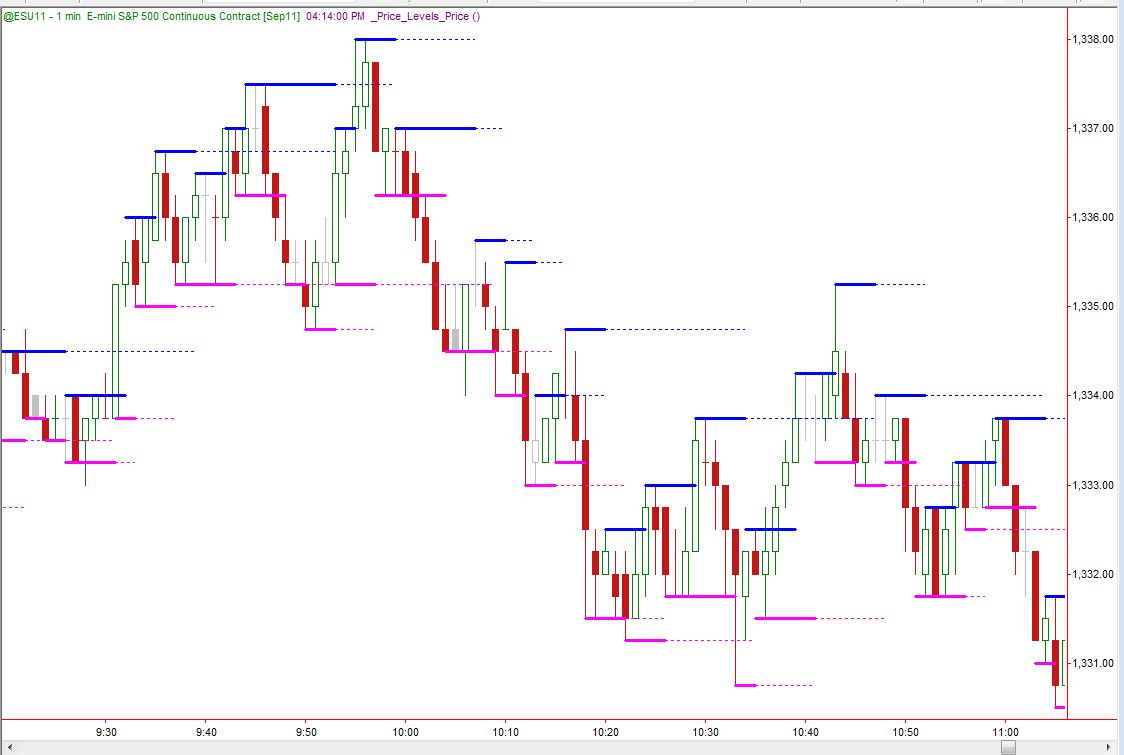

This is the indicator that I use on my chart. It is the only indicator I use on a price chart. As far as price is concerned, all I care about is Support and Resistance. I use this indicator on a one minute chart of the ES E-mini SP 500. It plots a Resistance line as soon as a Peak signal fires. When the second Peak signal fires, it plots a new Resistance line, and extends the old Resistance line in a different style. The same happens for Support lines.



attachment.php?attachmentid=25269&stc=1&d=1310178939





This indicator in in Easy Language code, programed in TradeStation. It is shown below, plus attached as an ELD file.





//7-8-11
// Programed by tradescripter

//hh=higher high, ll=lower low
var: hh(False),ll(False),lh(False),hl(False);
var: ClsDwn(False),ClsUp(False);
var: Aftr929(False),Aftr932(False),Aftr939(False);
var: BeforeCls(False);
var: DayHrs(False),newDay(False),OKtoPlot(False);
var: Peak1(False),Peak2(False),Peak3(False),Peak4(False),Peak5(False),Peak6(False);
var: Bttm1(False),Bttm2(False),Bttm3(False),Bttm4(False),Bttm5(False),Bttm6(False);
var: Peak(False),Bttm(False);
var: PeakPrice(H),BttmPrice(L),PriorPeakPrice(H),PriorBttmPrice(L);
var: NoPriorPk(False),NoPriorBttm(False);
var: HL_Price(False),LH_Price(False);
var: NewRzstnceExt(-1), OldRzstnceExt(-1), OldSupport(-1), OldExtSpprt(-1);
var: OldRzstnceBegPrice(h), OldSprtBegPrice(L), OldHiExtBegPrice(H), OldBegPrice2(H);
var: NewRzstnceBegTime(t), NewRzstnceExtBegTime(t), NewLowExtBegTime(t), NewSpprtBegTime(t);
var: NewRzstnceBegDate(D), NewSpprtBegDate(D), NewRzstnceExtBegDate(D), NewLowExtBegDate(D);
var: HierHigh(False), LowerHigh(False), HierLow(False), LowerLow(False);
var: SteppedDwn(0);
var: NewRzstnce(-1), OldRzstnce(-1), NewSpprt(-1);
var: NewSupportExt(-1);

hh=h>h[1];
ll=l<l[1];
lh=h<h[1];
hl=l>l[1];
ClsDwn=c<o;
ClsUp=c>o;

Aftr929=T>929;
Aftr932=T>932;
Aftr939=T>939;
BeforeCls=T<1600;
DayHrs=Aftr929 and BeforeCls;

newDay=date <> date[1];

//OKtoPlot=DayHrs=True;

Peak1=ClsUp[1] and ClsDwn;
Peak2=lh[1] = False and ClsDwn;
Peak3=lh[1] = False and lh;
Peak4=ClsUp[1] and lh;
Peak5=hh[1] and hh = False;
Peak6=hh and ClsUp = False;

Bttm1=ClsDwn[1] and ClsUp;
Bttm2=hl[1] = False and ClsUp;
Bttm3=hl[1] = False and hl;
Bttm4=ClsDwn[1] and hl;
Bttm5=ll[1] and ll = False;
Bttm6=ll and ClsDwn = False;

Peak=(Peak1 = True or Peak2 = True or Peak3 = True or Peak4 = True or Peak5 = True);
Bttm=(Bttm1 = True or Bttm2 = True or Bttm3 = True or Bttm4 = True or Bttm5 = True);

NoPriorPk=Peak[1] = false;
NoPriorBttm=Bttm[1] = false;

if Peak6 and NoPriorPk then
Begin
 PeakPrice = H;
End else If
 Peak and NoPriorPk then
Begin
 PeakPrice = H[1];
End;

if Bttm6 and NoPriorBttm then
BttmPrice=L else If Bttm and NoPriorBttm then
BttmPrice = L[1];

HierLow=BttmPrice>BttmPrice[1];
LowerHigh=PeakPrice<PeakPrice[1];

LowerLow=BttmPrice<BttmPrice[1];
HierHigh=PeakPrice>PeakPrice[1];

if LowerLow then SteppedDwn = 1 else if HierLow then SteppedDwn = 0;

if PeakPrice <> PeakPrice[1] then PriorPeakPrice = PeakPrice[1];
if BttmPrice <> BttmPrice[1] then PriorBttmPrice = BttmPrice[1];

{-- Starts a new Resistance Line, then ends the old Resistance Trend line if a new peak signal fires ---}
If Peak and NoPriorPk Then
Begin

 OldRzstnce = NewRzstnce;

  	If Peak6 and NoPriorPk then
 	 Begin
  NewRzstnce = tl_new(d[1], t[1], H, d, t, H);
 End
Else
 Begin
  NewRzstnce = tl_new(d[1], t[1], H[1], d, t, H[1]);
 	End;

Value1 = TL_SetExtRight(NewRzstnce, True);
Value2 = TL_SetSize(NewRzstnce, 2);
Value3 = TL_SetColor(NewRzstnce, Blue);

If OldRzstnce <> -1 Then
 Begin
 	NewRzstnceBegDate = TL_GetBeginDate(NewRzstnce);
   NewRzstnceBegTime = TL_GetBeginTime(NewRzstnce);
   OldRzstnceBegPrice = TL_GetBeginVal(OldRzstnce);
   Value4 = TL_SetExtRight(OldRzstnce, False); //Stop extending the original line to the right.
   Value5 = TL_SetEnd(OldRzstnce, NewRzstnceBegDate, NewRzstnceBegTime, OldRzstnceBegPrice);
 End;
End;

{-- Starts a new trendline if a new bottom signal fires ---}
If Bttm and NoPriorBttm Then
Begin
 OldSupport = NewSpprt;

  	If Bttm6 and NoPriorBttm then
 	 Begin
  NewSpprt = tl_new(d[1], t[1], L, d, t, L);
 End
Else
 Begin
  NewSpprt = tl_new(d[1], t[1], L[1], d, t, L[1]);
 	End;

Value6 = TL_SetExtRight(NewSpprt, True);
Value7 = TL_SetSize(NewSpprt, 2);
Value8 = TL_SetColor(NewSpprt, magenta);

 If OldSupport <> -1 Then
 Begin
 	NewSpprtBegDate = TL_GetBeginDate(NewSpprt);
   NewSpprtBegTime = TL_GetBeginTime(NewSpprt);
   OldSprtBegPrice = TL_GetBeginVal(OldSupport);
   Value9 = TL_SetExtRight(OldSupport, False);
   Value10 = TL_SetEnd(OldSupport, NewSpprtBegDate, NewSpprtBegTime, OldSprtBegPrice);
 End;

End;

{-- Extends the old Resistance trendline if a new peak signal fires ---}
If Peak and NoPriorPk and H <= PeakPrice[1] Then
Begin
 OldRzstnceExt = NewRzstnceExt;
 NewRzstnceExt = tl_new(d[1], t[1], OldRzstnceBegPrice, d, t, OldRzstnceBegPrice);

Value11 = TL_SetExtRight(NewRzstnceExt, True);
Value12 = TL_SetColor(NewRzstnceExt, Blue);
Value13 = Tl_setstyle(NewRzstnceExt, Tool_Dotted);

 If OldRzstnceExt <> -1 Then
 Begin
 	NewRzstnceExtBegDate = TL_GetBeginDate(NewRzstnceExt);
   NewRzstnceExtBegTime = TL_GetBeginTime(NewRzstnceExt);
   OldHiExtBegPrice = TL_GetBeginVal(OldRzstnceExt);
   Value14 = TL_SetExtRight(OldRzstnceExt, False);
   Value15 = TL_SetEnd(OldRzstnceExt, NewRzstnceExtBegDate, NewRzstnceExtBegTime, OldHiExtBegPrice);
 End;

End;

{-- Extends the old support line if a new bttm signal fires ---}
If Bttm and NoPriorBttm and L >= BttmPrice[1] Then
Begin
 OldExtSpprt = NewSupportExt;
 NewSupportExt = tl_new(d[1], t[1], OldSprtBegPrice, d, t, OldSprtBegPrice);

Value16 = TL_SetExtRight(NewSupportExt, True);
Value17 = TL_SetColor(NewSupportExt, Magenta);
Value18 = Tl_setstyle(NewSupportExt, Tool_Dotted);

 If OldExtSpprt <> -1 Then
 Begin
 	NewLowExtBegDate = TL_GetBeginDate(NewSupportExt);
   NewLowExtBegTime = TL_GetBeginTime(NewSupportExt);
   OldBegPrice2 = TL_GetBeginVal(OldExtSpprt);
   Value19 = TL_SetExtRight(OldExtSpprt, False);
   Value20 = TL_SetEnd(OldExtSpprt, NewLowExtBegDate, NewLowExtBegTime, OldBegPrice2);
 End;

End;

_PRICE_LEVELS_PRICE.ELD


Share this post

Link to post
Share on other sites

Tradewinds    12

Tradewinds
Posted

Here is an updated version. This version will show the price bubble on the price axis. I added a couple of plot statements, and made the plots a point style. That way there is no connecting line between the different levels. If you make the two plots a point style, and keep the line weight at the lowest setting, then the plot will never show. Why don't I want the plot to show? Because I don't need the plot, the trendlines are what I want to see. Then why put a plot on the chart that you don't want to see, and you won't see? So that the price bubbles show on the price axis. That way I know what the price is of the support and resistance lines.



So I figured out a "work around" for getting a price bubble to show on the price axis. The trendlines will not show update data, only plots show the values.



I got rid of some variables that were not being used, and cleaned up the code a little. I had programed this in another language, and had to rework it, and didn't need some of the old variables.



//8-5-11
//hh=higher high, ll=lower low
var: hh(False),ll(False),lh(False),hl(False);
var: ClsDwn(False),ClsUp(False);
var: Peak1(False),Peak2(False),Peak3(False),Peak4(False),Peak5(False),Peak6(False);
var: Bttm1(False),Bttm2(False),Bttm3(False),Bttm4(False),Bttm5(False),Bttm6(False);
var: Peak(False),Bttm(False);
var: CrrntHi(H),CrrntLw(L),PriorPeakPrice(H),PriorBttmPrice(L);
var: NoPriorPk(False),NoPriorBttm(False);
var: HL_Price(False),LH_Price(False);
var: NewRzstnceExt(-1), OldRzstnceExt(-1), OldSupport(-1), OldExtSpprt(-1);
var: OldRzstnceBegPrice(h), OldSprtBegPrice(L), OldHiExtBegPrice(H), OldBegPrice2(H);
var: NewRzstnceBegTime(t), NewRzstnceExtBegTime(t), NewLowExtBegTime(t), NewSpprtBegTime(t);
var: NewRzstnceBegDate(D), NewSpprtBegDate(D), NewRzstnceExtBegDate(D), NewLowExtBegDate(D);
var: NewRzstnce(-1), OldRzstnce(-1), NewSpprt(-1);
var: NewSupportExt(-1);

hh=h>h[1];
ll=l<l[1];
lh=h<h[1];
hl=l>l[1];
ClsDwn=c<o;
ClsUp=c>o;

Peak1=ClsUp[1] and ClsDwn;
Peak2=lh[1] = False and ClsDwn;
Peak3=lh[1] = False and lh;
Peak4=ClsUp[1] and lh;
Peak5=hh[1] and hh = False;
Peak6=hh and ClsUp = False;

Bttm1=ClsDwn[1] and ClsUp;
Bttm2=hl[1] = False and ClsUp;
Bttm3=hl[1] = False and hl;
Bttm4=ClsDwn[1] and hl;
Bttm5=ll[1] and ll = False;
Bttm6=ll and ClsDwn = False;

Peak=(Peak1 or Peak2 or Peak3 or Peak4 or Peak5);
Bttm=(Bttm1 or Bttm2 or Bttm3 or Bttm4 or Bttm5);

NoPriorPk=Peak[1] = false;
NoPriorBttm=Bttm[1] = false;

if Peak6 and NoPriorPk then
CrrntHi = H
else If Peak and NoPriorPk then
CrrntHi = H[1];

if Bttm6 and NoPriorBttm then
CrrntLw=L else If Bttm and NoPriorBttm then
CrrntLw = L[1];

plot1(CrrntHi, "Current High"); // Set to points so that the price of the line shows up on the axis
plot2(CrrntLw, "Current Low");

if CrrntHi <> CrrntHi[1] then PriorPeakPrice = CrrntHi[1];
if CrrntLw <> CrrntLw[1] then PriorBttmPrice = CrrntLw[1];

{-- Starts a new Resistance Line, then ends the old Resistance Trend line if a new peak signal fires ---}
If Peak and NoPriorPk Then
Begin

 OldRzstnce = NewRzstnce;

  	If Peak6 and NoPriorPk then
  NewRzstnce = tl_new(d[1], t[1], H, d, t, H)
Else
  NewRzstnce = tl_new(d[1], t[1], H[1], d, t, H[1]);

Value1 = TL_SetExtRight(NewRzstnce, True);
Value2 = TL_SetSize(NewRzstnce, 2);
Value3 = TL_SetColor(NewRzstnce, Blue);

If OldRzstnce <> -1 Then
 Begin
 	NewRzstnceBegDate = TL_GetBeginDate(NewRzstnce);
   NewRzstnceBegTime = TL_GetBeginTime(NewRzstnce);
   OldRzstnceBegPrice = TL_GetBeginVal(OldRzstnce);
   Value4 = TL_SetExtRight(OldRzstnce, False); //Stop extending the original line to the right.
   Value5 = TL_SetEnd(OldRzstnce, NewRzstnceBegDate, NewRzstnceBegTime, OldRzstnceBegPrice);
 End;
End;

{-- Starts a new trendline if a new bottom signal fires ---}
If Bttm and NoPriorBttm Then
Begin
 OldSupport = NewSpprt;

  	If Bttm6 and NoPriorBttm then
  NewSpprt = tl_new(d[1], t[1], L, d, t, L)
Else
  NewSpprt = tl_new(d[1], t[1], L[1], d, t, L[1]);

Value6 = TL_SetExtRight(NewSpprt, True);
Value7 = TL_SetSize(NewSpprt, 2);
Value8 = TL_SetColor(NewSpprt, magenta);

 If OldSupport <> -1 Then
 Begin
 	NewSpprtBegDate = TL_GetBeginDate(NewSpprt);
   NewSpprtBegTime = TL_GetBeginTime(NewSpprt);
   OldSprtBegPrice = TL_GetBeginVal(OldSupport);
   Value9 = TL_SetExtRight(OldSupport, False);
   Value10 = TL_SetEnd(OldSupport, NewSpprtBegDate, NewSpprtBegTime, OldSprtBegPrice);
 End;

End;

{-- Extends the old Resistance trendline if a new peak signal fires ---}
If Peak and NoPriorPk and H <= CrrntHi[1] Then
Begin
 OldRzstnceExt = NewRzstnceExt;
 NewRzstnceExt = tl_new(d[1], t[1], OldRzstnceBegPrice, d, t, OldRzstnceBegPrice);

Value11 = TL_SetExtRight(NewRzstnceExt, True);
Value12 = TL_SetColor(NewRzstnceExt, Blue);
Value13 = Tl_setstyle(NewRzstnceExt, Tool_Dotted);

 If OldRzstnceExt <> -1 Then
 Begin
 	NewRzstnceExtBegDate = TL_GetBeginDate(NewRzstnceExt);
   NewRzstnceExtBegTime = TL_GetBeginTime(NewRzstnceExt);
   OldHiExtBegPrice = TL_GetBeginVal(OldRzstnceExt);
   Value14 = TL_SetExtRight(OldRzstnceExt, False);
   Value15 = TL_SetEnd(OldRzstnceExt, NewRzstnceExtBegDate, NewRzstnceExtBegTime, OldHiExtBegPrice);
 End;

End;

{-- Extends the old support line if a new bttm signal fires ---}
If Bttm and NoPriorBttm and L >= CrrntLw[1] Then
Begin
 OldExtSpprt = NewSupportExt;
 NewSupportExt = tl_new(d[1], t[1], OldSprtBegPrice, d, t, OldSprtBegPrice);

Value16 = TL_SetExtRight(NewSupportExt, True);
Value17 = TL_SetColor(NewSupportExt, Magenta);
Value18 = Tl_setstyle(NewSupportExt, Tool_Dotted);

 If OldExtSpprt <> -1 Then
 Begin
 	NewLowExtBegDate = TL_GetBeginDate(NewSupportExt);
   NewLowExtBegTime = TL_GetBeginTime(NewSupportExt);
   OldBegPrice2 = TL_GetBeginVal(OldExtSpprt);
   Value19 = TL_SetExtRight(OldExtSpprt, False);
   Value20 = TL_SetEnd(OldExtSpprt, NewLowExtBegDate, NewLowExtBegTime, OldBegPrice2);
 End;

End;

Share this post

Link to post
Share on other sites

einja    10

einja
Posted

Hi Tradewinds,



Thank you, Thank you and Thank you for the support and resistance script. I had been looking this for a while.



Can u please let me know how many bars it takes to plot the support or resistance. for ex, if we are plotting parabolic sars, the green dot or red dots are plotted after the three bars have moved ahead. its more like lagging 3 bars.



Once again, your script help is greatly appreciated...

Share this post

Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

×
Go To Topic Listing

  • Topics

  • Posts

    • Stocks4life
      Breakout and Swing Stock Ideas

      By Stocks4life · Posted

      CVNA Carvana stock, nice top of range breakout at https://stockconsultant.com/?CVNA
    • Stocks4life
      Breakout and Swing Stock Ideas

      By Stocks4life · Posted

      GDRX GoodRx stock, good day, watch for a bottom range breakout at https://stockconsultant.com/?GDRX
    • HFblogNews
      HFMarkets (hfm.com): Market analysis services.

      By HFblogNews · Posted

      Date: 14th February 2025.   Can The NASDAQ Maintain Momentum at Key Resistance Level?     The price of the NASDAQ throughout the week rose more than 3.00% to bring the price back up to the instrument’s resistance level. However, while taking into consideration higher inflation, tariffs and the resistance level, could the index maintain momentum?   US Inflation Rises For a 4th Consecutive Month The US Consumer Price Index, or inflation, rose for a 4th consecutive month taking the rate even further away from the Federal Reserve’s target. Analysts were expecting the US inflation rate to remain unchanged at 2.9%. However, consumer inflation rose to 3.00%, the highest since July 2024, while Producer inflation rose to 3.5%. Higher inflation traditionally triggers lower sentiment towards the stock market as investors' risk appetite falls and they prefer the US Dollar. However, on this occasion bullish volatility rose. For this reason, some traders may be considering if the price is overbought in the short term.   Addressing these statistics, US Federal Reserve Chair Jerome Powell acknowledged that the Fed has yet to achieve its goal of curbing inflation, adding further hawkish signals regarding the monetary policy. Other members of the FOMC also share this view. Today, Raphael Bostic, President of the Federal Reserve Bank of Atlanta, stated that the Fed is unlikely to implement interest rate cuts in the near future. This is due to ongoing economic uncertainty following the introduction of trade tariffs on imported goods and other policies from the Republican-led White House.   Most of the Federal Open Market Committee emphasizes additional time is needed to fully assess the situation. According to the Chicago Exchange FedWatch Tool, interest rate cuts may not start until September 2025.   What’s Driving The NASDAQ Higher? Earnings data this week has continued to support the NASDAQ. Early this morning Airbnb made public their quarterly earnings report whereby they beat both earnings per share and revenue expectations. The Earnings Per Share read 25% higher than expectations and Revenue was more than 2% higher. As a result, the stock rose more than 14%. Another company this week that made public positive earnings data is Cisco which rose by more than 2% on Thursday. Another positive factor continues to be the positive employment data. Even though the positive employment data can push back interest rate cuts, the stability in the short term continues to serve the interests of higher consumer demand. The US Unemployment Rate fell to 4.00% the lowest in 8 months. Lastly, investors are also increasing their exposure to the index due to sellers not being able to maintain control or momentum. Some economists also increase their confidence in economic growth if Trump can obtain a positive outcome from the Ukraine-Russia negotiations.   However, during Friday’s pre-US session trading, 80% of the most influential stocks are witnessing a decline. The NASDAQ itself is trading more or less unchanged. Therefore, the question again arises as to whether the NASDAQ can maintain momentum above this area.   NASDAQ - News and Technical analysis In terms of technical analysis, the NASDAQ is largely witnessing mainly bullish indications on the 2-hour chart. However, the main concern for traders is the resistance level at $21,960. On the 5-minute timeframe, the price is mainly experiencing bearish signals as the price moves below the 200-period simple moving average.   The VIX, which is largely used as a risk indicator, is currently trading 0.75% higher which indicates a lower risk appetite. In addition to this, bond yields trade 6 points higher. If both the VIX and Bond yields rise further, further pressure may be witnessed for index traders.   Always trade with strict risk management. Your capital is the single most important aspect of your trading business.   Please note that times displayed based on local time zone and are from time of writing this report.   Click HERE to access the full HFM Economic calendar.   Want to learn to trade and analyse the markets? Join our webinars and get analysis and trading ideas combined with better understanding of how markets work. Click HERE to register for FREE!   Click HERE to READ more Market news.   Michalis Efthymiou HFMarkets   Disclaimer: This material is provided as a general marketing communication for information purposes only and does not constitute an independent investment research. Nothing in this communication contains, or should be considered as containing, an investment advice or an investment recommendation or a solicitation for the purpose of buying or selling of any financial instrument. All information provided is gathered from reputable sources and any information containing an indication of past performance is not a guarantee or reliable indicator of future performance. Users acknowledge that any investment in Leveraged Products is characterized by a certain degree of uncertainty and that any investment of this nature involves a high level of risk for which the users are solely responsible and liable. We assume no liability for any loss arising from any investment made based on the information provided in this communication. This communication must not be reproduced or further distributed without our prior written permission.
    • Stocks4life
      Breakout and Swing Stock Ideas

      By Stocks4life · Posted

      LUNR Intuitive Machines stock watch, attempting to move higher off 18.64 support, target 26 area at https://stockconsultant.com/?LUNR
    • Stocks4life
      Breakout and Swing Stock Ideas

      By Stocks4life · Posted

      CNXC Concentrix stock watch, pullback to 47.16 triple support area with bullish indicators at https://stockconsultant.com/?CNXC
×
×
  • Create New...

Important Information

By using this site, you agree to our Terms of Use.

  I accept
