Keltner price indicator

[BJOHNSON 10]

Wanting to know if someone could place tradestation alerts on this indicator keltner price or tell me how too.thanks for anyones help

[Tams 20]

Wanting to know if someone could place tradestation alerts on this indicator keltner price or tell me how too.thanks for anyones help





how would you like the alert?

sound/voice alert?

a dot on the chart?

a pop up window?

a color change in price bar?

a thickness change in price bar?

a color change in background?

a text message printed on the chart?

an arrow? (MultiCharts only)





can you post an annotated chart...

using lines, arrows, and notes to illustrate how the alert should be triggered?

(i.e. what is your logic?)

Edited October 27, 2009 by Tams

[BJOHNSON 10]

Thank so much how can i get info to you

[Tams 20]

Thank so much how can i get info to you





you can post the info here

this is a community... the lesson/tricks/tips are for everybody

[BJOHNSON 10]

I do not know how to make an attachment to my reply to you

[Tams 20]

I do not know how to make an attachment to my reply to you



see the "Go Advanced" button at the bottom of the reply box?



click on it...



the window will expand...



go further down the window, you will see the "Manage Attachments" button...



click on it... another window will pop up,

attach your chart... then click on the "Close Window" button at the top right corner (this step is very important)



that's it.







p.s. more help here:

http://www.traderslaboratory.com/forums/f30/how-post-chart-properly-805.html

Edited October 27, 2009 by Tams

[BJOHNSON 10]

The chart says it is too big for labs posting.

[Tams 20]

The chart says it is too big for labs posting.





don't save the chart as bmp



save it as jpg, gif or png.



you can use your windows paint program to convert it.

[BJOHNSON 10]

Heres the chart.want alerts to be written for it it presently has none as you can see from the code.thanks for all your help.

[BJOHNSON 10]

Did not send chart will send it.sorry

[BJOHNSON 10]

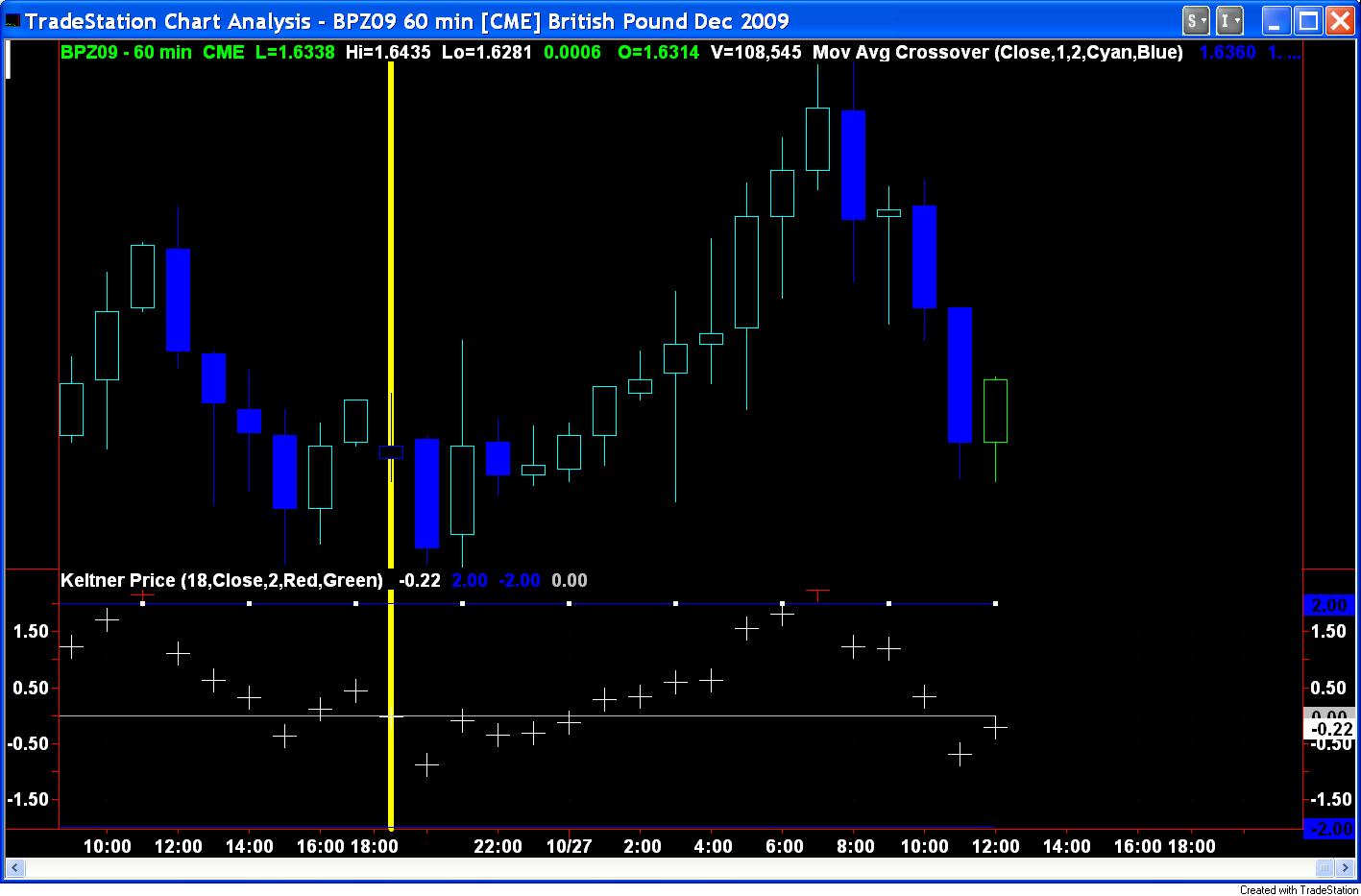

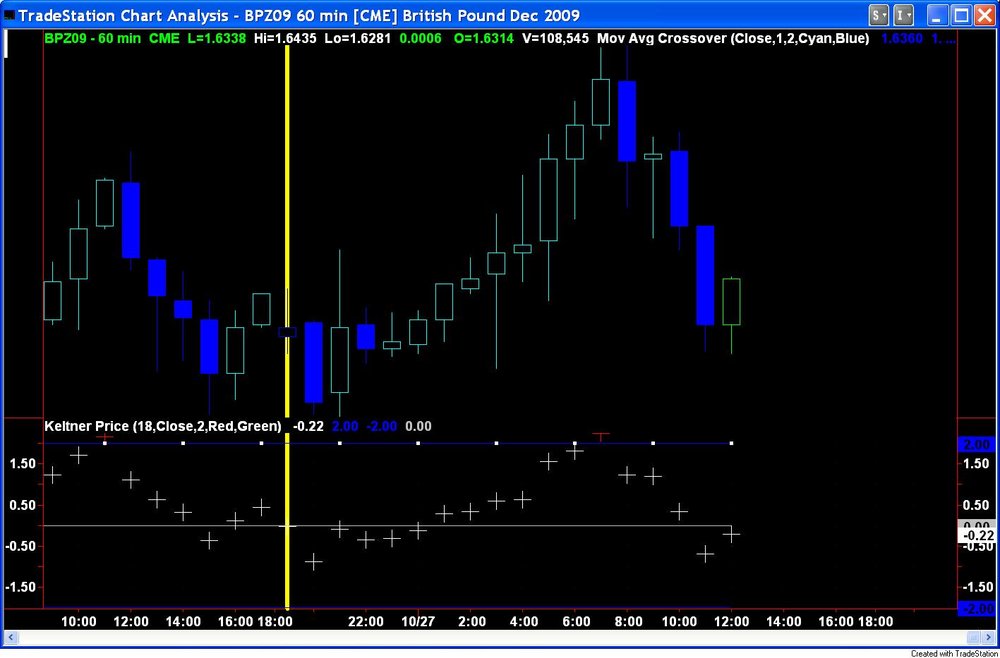

Heres the chart thanks for your patience and teaching me to use this site

[brownsfan019 17]

Heres the chart thanks for your patience and teaching me to use this site



I agree - it's nice when others can offer help and not be so abrupt to belittle them.

[Tams 20]

Heres the chart thanks for your patience and teaching me to use this site





can you describe the trigger you have in mind ?



e.g. what kind of condition(s) you are looking for that constitute a "signal" to you?



we can start with a simple event...



EasyLanguage is very powerful... you can build it into a complex logic that filters multiple conditions to arrive at your signal.

[BJOHNSON 10]

Keltner price chart want it toalert when the atr crosses overbought and oversold areas. Thanks

[Tams 20]

Keltner price chart want it toalert when the atr crosses overbought and oversold areas. Thanks





see post #2.... ..... ..... .....

[BJOHNSON 10]

A sound or any alerts types used in ts radarscreen=sounds popups etc

[BJOHNSON 10]

The trigger would be when atr on the keltner price crossesover or under the oversold or overbought areas

[Tams 20]

can you post the code you are using? (use copy and paste)



you code is different than mine...

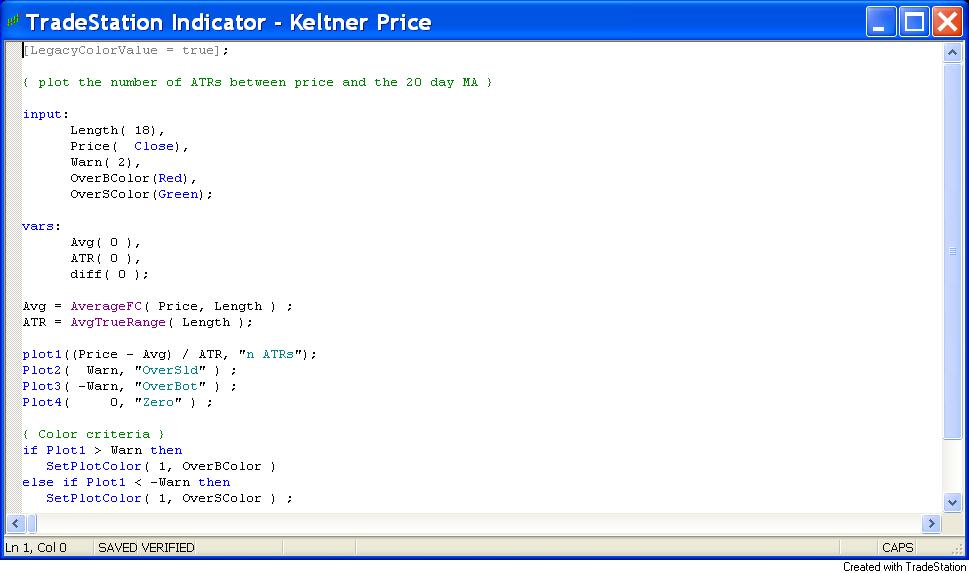

[BJOHNSON 10]

[LegacyColorValue = true];



{ plot the number of ATRs between price and the 20 day MA }



input:

Length( 18),

Price( Close),

Warn( 2),

OverBColor(Red),

OverSColor(Green);



vars:

Avg( 0 ),

ATR( 0 ),

diff( 0 );



Avg = AverageFC( Price, Length ) ;

ATR = AvgTrueRange( Length );



plot1((Price - Avg) / ATR, "n ATRs");

Plot2( Warn, "OverSld" ) ;

Plot3( -Warn, "OverBot" ) ;

Plot4( 0, "Zero" ) ;



{ Color criteria }

if Plot1 > Warn then

SetPlotColor( 1, OverBColor )

else if Plot1 < -Warn then

SetPlotColor( 1, OverSColor ) ;



{ Alert criteria }

[BJOHNSON 10]

Have to leave for an apptmt sorry thanks for trying to help us.will check on your answer when i get back.thanks again

[Tams 20]

simple enough...



I just copied your { Color criteria } and converted it to ALERT.



for more information about alert, check here:

http://www.traderslaboratory.com/forums/f56/alert-easylanguage-7049.html#post78999







[LegacyColorValue = true];

{ plot the number of ATRs between price and the 20 day MA }

input:
Length( 18),
Price( Close),
Warn( 2),
OverBColor(Red),
OverSColor(Green);

vars:
Avg( 0 ),
ATR( 0 ),
diff( 0 );

Avg = AverageFC( Price, Length ) ;
ATR = AvgTrueRange( Length );

plot1((Price - Avg) / ATR, "n ATRs");
Plot2( Warn, "OverSld" ) ;
Plot3( -Warn, "OverBot" ) ;
Plot4( 0, "Zero" ) ;

{ Color criteria }
if Plot1 > Warn then
SetPlotColor( 1, OverBColor )
else if Plot1 < -Warn then
SetPlotColor( 1, OverSColor ) ;

{ Alert criteria }
if Plot1 > Warn then
ALERT( "OverBColor" )
else if Plot1 < -Warn then
ALERT( "OverSColor" ) ;









p.s. not sure what you mean by the radarscreen monkey wrench you threw in at the last minute.

[Tams 20]

The trigger would be when atr on the keltner price crossesover or under the oversold or overbought areas





note:

your plot1 is not the ATR.



I just want to make sure you understand your data points.



your plot is based on:



(Price - Avg) / ATR

[BJOHNSON 10]

Thank you for all your time and help,sorry i had to leave but had an apptmt.came back to see you had finished thanks so much again.

[BJOHNSON 10]

Did yousay that you had another code for the keltner price,i thought that was what you said .if so i would love to have it to play around with it

[Tams 20]

Did yousay that you had another code for the keltner price,i thought that was what you said .if so i would love to have it to play around with it





have you tested the mod at post #21 ?
